TATA LCV MODELS

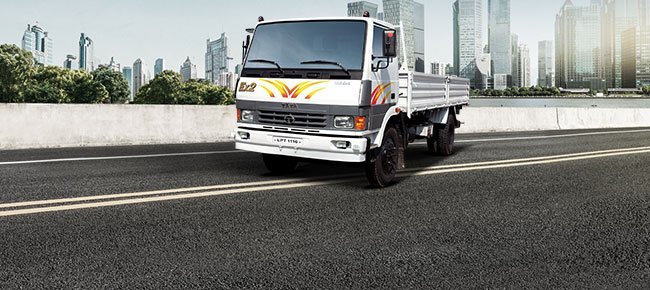

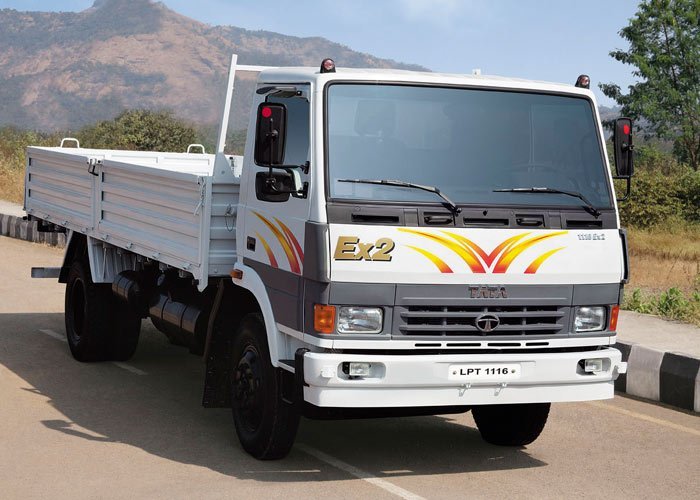

LPT 1116 DSLB Specifications:

Engine : TATA 697 TC/IC Euro - II Water cooled direct injection

Fuel Type : Diesel

No. of Cylinders : 6

Max. Power : 160 HP @ 2400rpm

Max. Torque : 550Nm @ 1500 – 1700rpm

Capacity : 5675cc

Clutch : Single plate dry friction pull type, Booster assisted

Transmission : 6 Forward / 1 Reverse

Dimensions (mm) : L 7,700 x W 2,270 x H 2,430

Wheelbase (mm) : 4,200

Permissible FAW : 4,000 Kg

Permissible RAW : 7,500 Kg

Permissible GVW : 11,500 Kg

Permissible Payload : 7,500 kg
